ST-50PL-MAX Palletizer Robot

ST-50PL-MAX Palletizer Robot

ST-50PL-MAX is the pinnacle of the MAX series, offering a 50kg payload for the most demanding palletizing applications.

Engineered for maximum efficiency and durability, it delivers unmatched end-of-line performance.

Ideal for heavy-duty logistics, food and beverage, and manufacturing environments with high throughput needs.

st50plmax.techSpecs.title

st50plmax.applications.subtitle

st50plmax.techSpecs.section

Effective Load:
50kg
Motion Radius:
1900mm
Stacking Height:
2600mm
Stacking Speed:
MAX: 9pcs/min • MAX-G: 12pcs/min
Repeatability:
±0.04mm
Power Capacity:
3.7KVA
Robot Weight:
350kg
Communication Mode:
TCP/IP
Protection Rating:
IP54
Equipment Floor Area:
1510×1720mm
Operating Area:
3550×1720mm
Floor Height:
3200mm

st50plmax.diagram.title

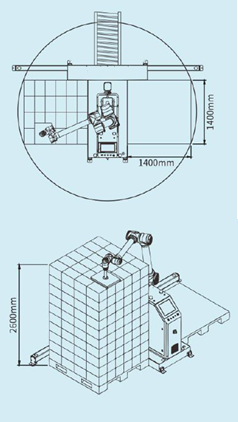

ST-50PL-MAX Product Diagram

Detailed technical diagram showing dimensions and specifications

Applications

Versatile solutions for various industrial applications

st50plmax.apps.highSpeedPickPlace.title

st50plmax.apps.highSpeedPickPlace.description

st50plmax.apps.precisionAssembly.title

st50plmax.apps.precisionAssembly.description

st50plmax.apps.packagingOperations.title

st50plmax.apps.packagingOperations.description

st50plmax.apps.sortingApplications.title

st50plmax.apps.sortingApplications.description

st50plmax.apps.qualityInspection.title

st50plmax.apps.qualityInspection.description

st50plmax.apps.materialHandling.title

st50plmax.apps.materialHandling.description

Pinnacle of Palletizing Technology

Experience the unmatched performance and capabilities of the ST-50PL-MAX, the pinnacle of palletizing technology for your most demanding industrial applications.
